Producent: Lumenier

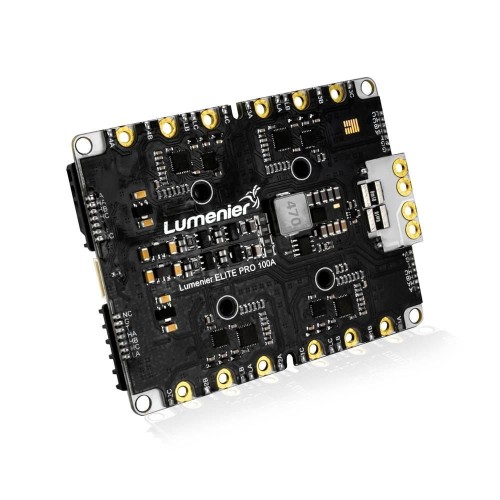

The Lumenier ELITE PRO 100A 12S BLHeli_32 4-in-1 ESC is a powerful ESC with the latest BLHeli_32 + telemetry and current sensor capable of 100A constant current and up to 12S (52V) input. The CNC aluminum heatsink provides excellent cooling required for high-power setups often required in Cinema and heavy lift drones. The 4-in-1 design simplifies the installation allowing for 4x ESCs all on 1 board with a simple plug and play cable to connect to your flight controller and BLHeli_32 passthrough for easy programming and firmware updates. If you're looking for maximum power and performance for your drone, this is the ESC for you.

WARNING: The onboard BEC on the ESC that is meant to power the flight controller via the 8 pin connector has had reports of voltage drops. Do not use the ESC's BEC to power your flight controller or other electronics, instead power your flight controller directly from the battery power, or via a stand-alone BEC.

The ESC functionality works as long as you don't use the onbboard BEC.


  • Supports Dshot300, Dshot600, Dshot1200, MultiShot, OneShot, and normal PPM 1-2us
  • The one-sided Mosfet design reduces noise and provides better heat dissipation
  • Superb PCB circuit design and 8oz thick copper ensures high-current capability
  • Cortex M4 32-bit processor runs with 120M Hz frequency
  • High-voltage low resistance 100V, 1.5mΩ Mosfet
  • 30.5x30.5m and 86x66mm Mounting Patterns
  • Supports High Demag Compensation
  • 12S High-voltage support (52V)
  • Supports Bidirectional + Dshot
  • Optimized BLHeli_32 Firmware
  • Supports PWM 8-48kHz


The custom heatsink design provides improved heat dissipation making this ESC a perfect choice for high power needs found in Cinelifters, large drones, and high-performance racing drones. The heatsink effectively cools the ESC allowing for reliable operation even in challenging environments.


The Lumenier ELITE PRO 100A 12S BLHeli_32 4-in-1 ESC is a 32-bit ESC running the latest generation BLHeli_32 firmware. The 32-bit architecture enables the ESC to run at incredible speeds resulting in better performance, faster input signals, and lower latency compared to older 8-bit ESCs. This ESC also features a live telemetry connection for more advanced flight controllers, as well as a top-of-the-line current sensor.


One of the biggest features of this ESC is the heavy-duty copper traces (8oz) which can support extreme current. Additionally, the ESC PCB is 2mm thick and layered on a 2nd PCB of 1mm for a total of 3mm. More copper along with the included aluminum heatsink allows you to push more power to your drone.


32-bit processors run faster than 8-bit, at which we can expect better performance from the new 32-bit ESCs. Faster input signals with lower latency and higher update rate would be possible, such as Dshot1200 or even faster protocols! (Read about DSHOT) (Read about DSHOT1200)

The 32-bit platform also allows more functionality and features that simply weren't possible on 8bit ESCs, such as:

  • Improved direction change in the Bidirectional mode
  • Auto-timing for higher efficiency and reliability
  • Configuring from FC using DShot commands
  • Adjustable “Brake on Stop” force
  • Programmable PWM frequency
  • Voltage/Current limiting
  • RGB LED control
  • ESC Telemetry


  • Supports: Dshot300, Dshot600, Dshot1200, MultiShot, OneShot, and normal PPM 1-2us.
  • Mounting Patterns: 30.5x30.5m / 86x66mm
  • Processor: Cortex M4 32-Bit 120Hz
  • Dimensions: 97mmx72mmx15mm
  • Continuous Current: 100A
  • Peak Current: 120A
  • Supports: PWM 8-48kHz
  • Firmware: BLHeli_32
  • Mosfet: 100V, 1.5mΩ
  • Voltage: 6-12S
  • Weight: 107g



  • 1x Lumenier ELITE PRO 100A 6-12S BLHeli_32 4-in-1 ESC
  • 2x 8pin to Single-Connector Breakout Cable
  • 1x 10AWG 200°C Wire - Black
  • 1x 10AWG 200°C Wire - Red
  • 2x 8pin to 8pin JST-SH cable
  • 1x 63V 1800uF Capacitor
  • 5x M3 Rubber Grommets
  • 1x Plastic Hardware set (M3 spacers, screws, nuts)
