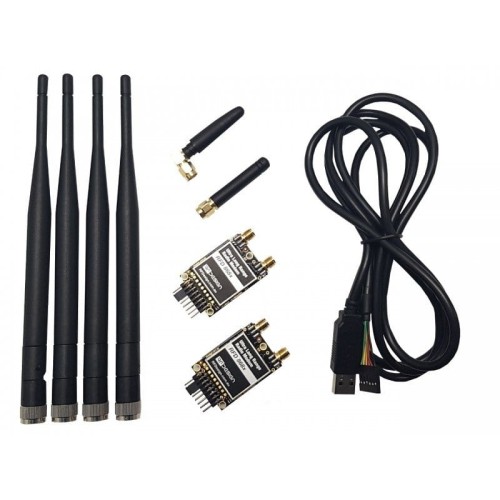

Zestaw radiomodemów RFD868x-EU

Dostępność: na wyczerpaniu
Wysyłka w: 7 dni
Dostawa: Cena nie zawiera ewentualnych kosztów płatności sprawdź formy dostawy
Cena: 1 489,00 zł 1489.00
ilość szt.

towar niedostępny

dodaj do przechowalni

Opis

Zestaw radiomodemów dalekiego zasięgu na 868MHz.

Wersja certyfikowana w EU, zgodna z następującymi normami::

  • EN 301 489-3 V2.1.1
  • EN 300 220-2 V3.1.1
  • EN 62311:2008

Wersja certyfikowanana w EU ma ograniczone tryby działania, małej mocy (5mW) z pełnym wypełnieniem i tryb wysokiej mocy (500mW) z małym wypełnieniem.

Tryb małej mocy znacząco zmniejsza zasięg a tryb wysokiej mocy znacząco zmniejszy przepustowość. Te tryby są zgodne z wymaganiami EU i nie mogą być zmienione.

Please note:  The EU certified modems have limited operation modes, a low power (5mW) full duty cycle mode, and a high power (500mW) low duty cycle mode. The low power mode will significantly reduce the effective range of the system and the low duty cycle mode will significantly reduce data throughput. These conditions are a requirement  of the certified modems and CANNOT be altered.

RFD868x-EU New Features:

  • New Processor, ARM 32 bit core.
  • Air data rate: 200kbit/s.
  • AES Hardware accelerated encryption. *Fully working*
  • RC PPM Passthrough with telemetry at the same time.
  • Fully ESD protected + filtered - Every IO port is protected and filtered.
  • Original SiK point to point firmware implemented.
  • Note: Currently due to the bandwidth limitations of the 868 modems Asynchronous Mesh and Multipoint Firmware are not officially supported for the 868X modems and correct operation of this code cannot be guaranteed

Features:

  • Long range >20km depending on antennas and GCS.
  • 2 x RP-SMA RF connectors, diversity switched.
  • 500mW (+27dBM) See specifications.
  • Transmit low pass filter.
  • > 20dB Low noise amplifier, high IP3.
  • RX SAW filter.
  • All I/O ESD protected and filtered.
  • Re implemented SiK and firmware, field upgrade-able, easy to configure.
  • Small, light weight.
  • Note: Not compatible with older modems
  • The standard RFD868x will not communicate with the RFD868x-EU modem unless the standard RFD868x is configured to the same frequency as the EU modem.

 Interfaces:

  • RF : 2 x RP-SMA connectors
  • Serial: Logic level TTL (+3.3v)
  • Power: +5v, ~800mA max peak (at maximum transmit power)
  • GPIO: 6 General purpose IO (Digital capable).

Specifications:

  • Frequency Range:  868-869 MHz
  • Output Power: 500mW (+27dBm), controllable in 1dB steps ( +/- 1dB @=20dBm typical)
  • Air Data transfer rates: 12, 56, 100, 200 kbit/sec (User settable,  200 kbit default)*
  • UART data transfer rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 1M baud (User settable, 57600 default)*

    *note these values are correct as of version 3.07 SiK firmware

  • Output Power: 500mW (+27dBm)
  • Receive Sensitivity: >111 dBm at 12 kbps, 105 at 64 kbps and 98 at 200 kbps
  • Size: 30 mm (wide) x 57 mm (long) x 12.8 mm (thick) - Including RF Shield, Heatsink and connector extremeties
  • Weight: 14.5g
  • Mounting: 3 x M2.5 screws, 3 x header pin solder points
  • Power Supply: +5 V nominal, (+3.5 V min, +5.5 V max), ~800 mA peak at maximum power
  • Temp. Range: -40 to +85 deg C, tested operational from -73 to +123 deg C.

Software / GCS Support:

The software solution is an open source development called "SiK".  It has been re implemented to suit the new processor architecture available on the 32bit ARM processor core.  A boot loader and interface is available for further development and field upgrade of the modem firmware via the serial port.

Most parameters are configurable via AT commands, Eg. baud rate (air/uart), frequency band, power levels.

Integrated support for configuring the RFD radios is supported by APM Planner.

The default settings are at 57600 baud, N, 8, 1, and 200k air data rate.

The RFD868/900x manual is here: RFD900x Manual

The RFD868/900x SiK software manual is here : RFD900x Peer-to-peer Manual

Software features include:

  • Frequency hopping spread spectrum (FHSS)
  • Transparent serial link
  • Point to Point
  • Configuration by simple AT commands for local radio, RT commands for remote radio
  • User configurable serial data rates and air datarates
  • Error correction routines, Mavlink protocol framing (user selectable)
  • Mavlink radio status reporting (Local RSSI, Remote RSSI, Local Noise, Remote Noise)
  • Automatic antenna diversity switching on a packet basis in realtime
  • Automatic duty cycle throttling based on radio temperature to avoid overheating

Compliance:

We declare that the equipment is in conformity with the relevant Union harmonisation legislation:

Directive 2014/53/EU on radio equipment

The RFD868x-EU is compliant with the following standards:

  • EN 301 489-3 V2.1.1
  • EN 300 220-2 V3.1.1
  • EN 62311:2008
